Quick localisation of surface moisture

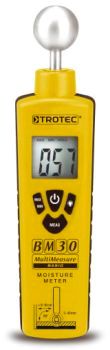

The BM30 is an electronic moisture indicator designed to detect moisture that has spread close to the surface in various different types of materials, like those found in walls, floors or ceilings quickly and easily.
The dielectric measuring method is a totally non-destructive measuring method designed to determine whether there is any moisture in the materials without having to insert any probes or electrodes.
The BM30 can be used immediately and does not only have an extremely short reaction time, but can also provide the user with valuable information like the current value and the minimum and maximum values at the touch of a button on a brilliant, backlit display.
The moisture indicator is also equipped with a hold-function that can freeze the current Value at any wanted time.
Features:
-
◆ Quick and non-destructive indication of moisture spread in close-to-surface areas.
-
◆ Extremely useful preliminary testing device for CM measurements.
-
◆ Minimum and maximum value function / hold function.
-
◆ Automatic function and battery test.
-
◆ Ready to use.
-
◆ Backlit display.
-
◆ Auto power off.
|
Technical data: |
|
Article no. |
3.510.205.030 |
|
Measuring principle |
dielectric |
|
Measuring range |
0 to 100 digits |
|
Resolution |
1 digit |
|
Penetration depth |
5 to 40 mm |
|
Functions |
Minimum, maximum value display, hold function, backlit display, |
|
Power supply |
9 V IEC 6LR61 |
|
Dimensions |
180 x 45 x 35 mm |
|
Weight |
180 g |
|
Scope of supply |
Meter, batteries, operating instructions |
