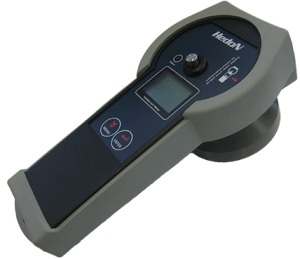

Soluble Salt Meter
The Soluble Salt Meter was developed specifically to improve current methods of establishing surface cleanliness.
The goals in developing the Soluble Salt Meter were to:
-
◆ Improve the time, quality, and accuracy in field analysis.
-
◆ Eliminate use of syringe needles.
-
◆ Develop a paperless instrument.
-
◆ Automate water dosing and washing system.
-
◆ Eliminate consumables (patches and syringes).
-
◆ Exactly replicate the Bresle patch protocol.
-
◆ Eliminate residue left behind from Bresle and other adhesive patches.
The Soluble Salt Meter is the approved alternative for use as a replacement to the Bresle patch method equivalent to ISO Standard 8502—9 (Field Method for the conductometric determination of water soluble salts in accordance with NACE SP0508-2008) and & Salt Contamination Meter method.
Technical Specifications:
|
Compartment Area: 1250 mm2 (circular)
|
Accurate metering valve (3.0 ± 0.04 ml)
|
|
Fixed footprint
|
Air Evacuation: Automated
|
|
Attachment Method: Magnetic
|
Chamber relaxes automatically
|
|
No effect on surface quality
|
No time delays
|
|
Proven to seal over deep pits
|
No Human Errors
|
|
Water Injection Method: Automated
|
|
Advantages :
-
◆ Accurate, easy measurements.
-
◆ Repeatable results.
-
◆ Rugged, industrial hardened measurement device.
-
◆ Simple operating instructions.
-
◆ Reduced process steps (17 steps reduced to 6 steps).
-
◆ Reduced process time (only one minute reading to reading).
-
◆ Eliminate process induced surface contamination (sticky residue).
-
◆ Equipment easily transportable (tank inspections).
-
◆ Rugged, industrial hardened measurement device.
-
◆ Improved safety (syringes/needles eliminated).
-
◆ Operator error minimized // Metered water injection // Automatic data recording feature.
Procedures : 6 Total Steps (1 minute)
1. Attach meter to surface.
2. Inject deionized water into measurement chamber with one press of the dose bottle.
3. Meter automatically agitates solution (~ 40 seconds).
4. Meter automatically takes reading; - Display reading on LCD screen - Stores values electronically.
5. Wipe remaining water from surface after removing SSM.
6. Flush meter by turning over and injecting water from dose bottle.
Curved adapters for Soluble Salt Meter:
Salt measurement with the Soluble Salt Meter on curved surfaces is made possible by using one of the curved adapters.
Just attach the fitting adapter to the Soluble Salt Meter and get accurate measurements instantly.
Specifications:
|
Standards
|
Equivalent to ISO Standard 8502-9 (Field method for the conductometric
determination of water-soluble salts; The Bresle method) in accordance with NACE SP0508-2008.
|
|
Measurement Area
|
1250 mm (circular) fixed footprint
|
|
Attachment Method
|
Magnetic with silicone seal (no effect on surface quality; proven to seal over deep pits)
|
|
Water Injection Method
|
Automated, with simple press of fixed volume dispenser
|
|
Dose
|
3 ± 0.05 ml
|
|
Measurement Process Steps
|
5
|
|
Total Process Time
|
60 seconds (measurement to measurement)
|
|
Measurement Range
|
0-100 μS/cm
|
|
Resolution
|
1 μS/cm
|
|
Measurement Accuracy
|
± 3 μS/cm
|
|
Surface Temperature Range
|
5 - 50 °C (41 - 122 °F)
|
|
Temperature Probe Accuracy
|
± 0,3 °C (± 0,54 °F)
|
|
Diameter of curvature:
|
- Standard measuring head >= 44 inch / 1100mm
- Measuring head 1 26 <=> 42 inch / 650 <=> 1050mm
- Measuring head 2 14 <=> 24 inch / 350 <=> 600 mm
- Measuring head 3 8 <=> 12 inch / 200 <=> 300 mm
|
|
Readout
|
μS/cm or mg/m2
|
|
Memory
|
Holds up to 1000 measurements (10 batches of up to 100 measurements each)
|
|
Connectivity
|
via USB with PC or laptop
|
|
Power Supply
|
Lithium-ion rechargeable battery
|
|
IP Rating
|
IP54
|
|
Dimensions (Instrument only)
|
21 x 10 x 8 cm
|
|
Weight ( Instrument only )
|
780 gr.
|
