DRYING TIME RECORDER
A reliable apparatus to test the drying time or gelation behaviour of many paints and coatings,
The drying time is calculated from the distance travelled, measured using a graduated rule along the edge, corresponding to the various stages observed on the trace.
Automatically stops at the end of travel.
A needle carrier holding six hemispherical ended needles travels the length of the six 305 x 25 mm test strips in 6, 12 or 24 hours.
Features:
◆ Simple maintenance & easy to clean.
◆ Evaporation of solvent: deep pear-shaped impression.
◆ Sol-gel transition: continuous track.
◆ Surface dry: interrupted track.
◆ Final dry time, the needle no longer penetrates the film.
◆ 240 V/50 Hz or 110 V/60 Hz*.
The BK 3 Speed Drying Recorder has been used widely in the coatings industry throughout the world for several decades.
BK3: 6 tracks, 3 selectable speeds: 6, 12 or 24 h.

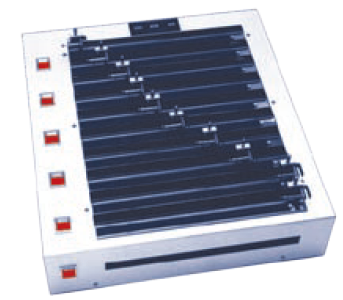

The BK 6 and BK 10 Recorders have independently operating tracks allowing tests to be made at different start times.
Pairs of tracks operate at the same speed, and a wide range of travel times are available. Travel times of 6, 12, 24 and 48 hours are all considered as standard. A time scale on the front cover is graduated to suit the instrument’s drying time ranges.
◆ Each pair of tracks has its own individual operating switch.
◆ BK6: 6 tracks, each pair of tracks is driven by an Independent motor
◆ BK10: 10 tracks, each pair of tracks is driven by an Independent motor
Supply with: Recorder, set of 6 (or 10) needles, pack of 6 (10) glass strips
Optional Accessories:
 |
Hemispherical ended stainless steel needles. |
BK/N (1 mm) |
 |
2mm ball ended stainless steel needles. |
BK/N (1 mm) |
 |
5mm PTFE ball ended needles for specialist applications |
BK/PTFE (5 mm) |
 |
Teflon coated needles for specialist applications (coated one end). |
BK/PTFE (5 mm) |
 |
5gram brass weights to increase test pressure |
BK3/BW |
 |
Glass test strips (pack of 12) |
BK/GS |
 |
25mm Paint cube film applicator in stainless steel with film width 16mm - 37 / 75um Gap Sizes |
1103 |
 |
Caster guide for use in conjunction with the paint film applicator |
BK/CG |
Other speeds are available to special order.
