Salt Contamination Meter 130
The Model 130 quickly and accurately measures the level of soluble salts on surfaces.
-
◆ Fast reading rate allows multiple tests to be completed efficiently.
-
◆ Pressure plate ensures a constant and uniform pressure to paper.
-
◆ Automatic detection of paper size and automatic adjustment of reading value.
-
◆ USB and Bluetooth® data output to ElcoMaster™ 2.0 software (Bluetooth on top model).
-
◆ Dust and water resistant rugged design equivalent to IP64.
-
◆ Automatic temperature compensation ensures accurate results (top model).
-
◆ Non-oxidising gold plated contacts ensures lifetime accuracy.
-
◆ Stores up to 150,000 readings in 2,500 alpha numeric batches (top model).
-
◆ Fully portable hand-held, ergonomic design ideal for use in the field.
|
 |
 |
 |
|

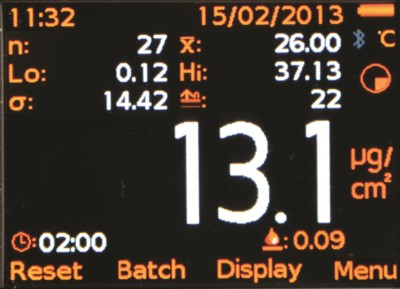

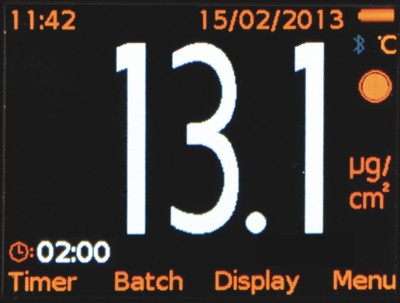

Large colour LCD screen displays readings in µg/cm², ppm, µS/cm, mS/cm, % salinity or mg/m² |

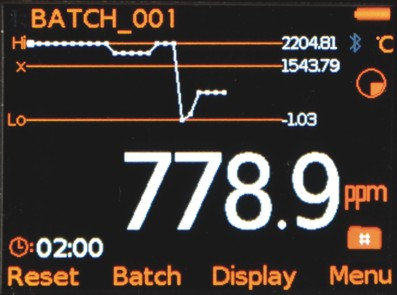

On-screen run graph shows last 20 measurement values |
Offset calibration allows use of non-pure water |
User Friendly:
-
◆ Large buttons ideal for gloved hands.
-
◆ Easy to use menus in multiple languages.
-
◆ High and low reading limit indicators.
-
◆ Factory calibrated for immediate use.
Accurate:
-
◆ Conductivity measurement to ±1%.
-
◆ Can be used in accordance with National and International Standards.
-
◆ Automatic temperature compensation ensures repeatable, accurate results.
-
◆ Calibration verification tiles.
-
◆ Trend and batch readings graph formats for instant on-screen analysis.
Reliable:
-
◆ Repeatable and reproducible measurements.
-
◆ 2 year gauge warranty.
-
◆ Supplied with fully traceable Test Certificates.
-
◆ Batch & individual readings are stored with date and time stamp, temperature and size of test paper.
Tough:
-
◆ Heavy duty, impact resistant, dust and waterproof design equivalent to IP64.
-
◆ Wipe clean sealed unit ideal for harsh environments.
-
◆ Scratch and solvent resistant display.
Efficient:
-
◆ Instant readings allows multiple tests to be completed efficiently.
-
◆ Alpha numeric batch identification.
-
◆ Compatible with ElcoMaster™ 2.0 and ElcoMaster™ Mobile App.
-
◆ Powersave mode with 'tap awake' feature.
-
◆ Calibration offset allows the use of non-pure water up to 2μg/cm².
Powerful:
-
◆ Measuring range up to 50μg/cm² (3000ppm).
-
◆ USB and Bluetooth® data output.
-
◆ Stores up to 150,000 readings in 2,500 batches.
-
◆ Soluble salt and conductivity meter in one gauge.
Technical Specification :
|
|
|
Model S |
Model T |
|
Measurement Range |
|
0-25μg/cm² |
0-50μg/cm²; 0-500mg/m²; 0-6000μS/cm; |
|
|
|
|
0-6mS/cm; 0-3000ppm; 0-0.3% Salinity |
|
Resolution |
0-10μg/cm² |
0.1μg/cm² |
0.1μg/cm² |
|
|
10-25μg/cm² |
0.2μg/cm² |
0.2μg/cm² |
|
|
25+μg/cm² |
|
0.5μg/cm² |
|
Measurement Accuracy |
±1% of reading ±0.1μg/cm² |
|
Operating Range |
5°C - 50°C (41°F - 122°F) |
|
Power Supply |
4 x AA dry cell batteries (rechargeable batteries can also be used), or recharge via USB |
|
Number of Tests |
Approximately 4,000 measurements before recharge |
|
Sample Time |
2 minutes |
Sampling Size |
100mm (4.3") circle, or part of |
|
Dimensions |
250 x 145 x 50mm (9.8 x 5.7 x 1.9") |
Weight |
780g (1.72lb) |
|
Packing List |
Elcometer 130 Salt Contamination Meter, 100 x high purity test papers, 250ml (8.5fl oz) pure water, 20 x PVC storage bags, disposable gloves, sensor wipes, 3 x 2.5ml (0.08fl oz) syringes, 2 x plastic tweezers, 4 x AA batteries, shoulder strap, carry case, test certificate and operating instructions, USB cable (T), ElcoMaster™ 2.0 software (T) |
