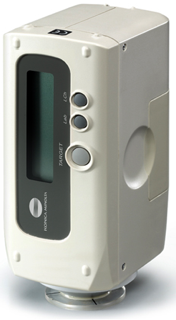

Compact Colorimeter for fast and easy colour check on almost any samples.
Features:
-
◆ Ease of use only has necessary features for functioning. This makes it easy to learn for first- time users.
-
◆ LCD display color difference expressed in L*a*b* and dE* or L*C*H* and dE* illustrated on easily viewable LCD screen.
-
◆ Lightweight and compact size very compact and battery-operated allowing it to be taken almost anywhere.
-
◆ Low priced competitively priced so it is great for first-time users and those who need more than one device.
Specifications:
Principal Specifications CR-10
Model |
Colorimeter CR-10 |
Illumination / Viewing geometry |
8°:di (8° illumination angle/diffuse viewing, specular component included SCI) |
Receptors |
6 silicon photocells (3 for measurement, 3 to control illumination) |
Measuring area |
Approx. Ø 8 mm |
Display modes |
∆L*∆a*∆b* / ∆E*ab or ∆L*∆C*∆H* / ∆E*ab |
Target colour memory |
1 channel; set by measurement |
Measuring range |
L*: 10 to 100 |
Observer |
CIE: 10° Standard Observer |
Illuminant condition |
CIE : Standard Illuminant D65 |
Repeatability |
Standard deviation within ∆E*ab 0.1 (Measurement conditions: Average of measurements of standard white plate) |
Minimum interval between measurements |
Approx. 1 sec |
Power source |
Four AA-size batteries or optional AC Adapter AC-A308 |
Battery life |
Alkaline-manganese batteries: Approx.2000 measurements at 10-sec. intervals Ni-Cd batteries: Approx. 600 measurements at 10-sec intervals |
Operating temperature/ humidity range |
0 - 40°C; relative humidity 85% or less (at 35°C) with no condensation |
Storage temperature/ humidity range |
-20 - 55°C; relative humidity 85% or less (at 35°C) with no condensation |
Dimensions (W xH xD) |
59 x 158 x 85 mm |
Weight |
360 g without batteries |
Standard accessories |
Soft Case CR-A68; Protective Cap CR-A72; Wrist Strap CR-A73; AA-size batteries (4) |
Optional accessories |
AC Adapter AC-A308; Printer Cable CR-A75 |
