Surface Profile Needle Gauge
Surface Profile Needle Gauge

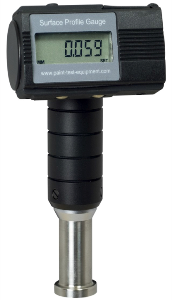

Surface Profile Gauge                                                              Paint Test Equipment – UK

   Complies with International Standards
   ASTM D 4417-B     SABS 772

The Surface Profile Gauge allows the peak-to-valley height of a blast-cleaned surface to be accurately measured in accordance with the ASTM D4417 Standard.

A simple-to-use Surface Profile Gauge, offering a high resolution of 1μm (0.1mils).

The blasted profile is measured very quickly and with a high degree of accuracy by operating the instrument as follows: Place the Profile Gauge on the glass plate and zero the instrument. Now place the gauge on the blasted profile. The foot sits on top of the peaks and the sharp stylus travels to the bottom of the valleys allowing the gauge to display the peak-to-valley height.

In addition to blasted profile evaluation, this gauge can also be used for pitting and cavity depths caused by corrosion.

Readings are switchable between metric and imperial.

Supplied in a foam-filled Carrying Case with Glass Zero Disk.

Surface Profile Gauge Specifications:
Part No Range Resolution Accuracy Cal Cert
Part No
R1006 0–1000μm
0–40mils
1μm
0.1mils
±2% NR002
