BEND TESTER

CONICAL MANDREL

The Tester is a mechanical tester used to determine the effects of bending on the elasticity, adhesion and elongation properties of cured coatings on sheet metal.

The frame has a bending lever with a roller 200 mm length which pivots on a steel conical mandrel with a diameter from 4 – 38 mm.

 A graduation indicates the mandrel diameter in both mm and inches.

The specimen can be bent on part of, or along, the entire length of the mandrel, and the results (cracks) corresponding to different test diameters can be observed in a single operation. This is ideal for use in conjunction with the cylindrical mandrel, as it identifies the stop point for more focused testing.

As the instrument is machined out of a solid block of steel, the particularly robust and rigid construction provides excellent resistance to wear and provides long service life. A large, sturdy powder coated base.



SIIN – 801

Sturdy cylinder made of a Steel and chrome plated.

SIIN – 802

Sturdy cylinder made of a Stainless Steel.

Ergonomic clamping device for test panel.

Quick lever handle CAM type that lock and unlocks easily.

Roller length 200 mm
Roller Diameter 4  - 38 mm
Sample Size 180 x 100 x 0.8mm (7 x 4 x 0.03”)
Diemensions 325 x 350 x100mm (12.8 x 13.8 x 4”)
Weight 9kg (20lb)

CONFORMS  TO : ASTM D 522, BS 3900-E11, ISO 6860

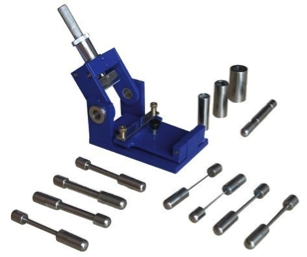

CYLINDRICAL MANDREL (BEND TESTER)

It is very robust mechanical unit for determining the elasticity, adhesion and elongation properties of cured coatings on sheet metal.
The frame has a bending lever with height-adjustable rollers and a sliding vice for clamping the sample which means the test pieces are bent perfectly and regularly on decreasing mandrels until the desired effect can be observed.
The instrument can be adjusted to the diameter of the mandrel used and the mandrels are easily changed.

Test Piece Width Maximum: 64mm (2.5”)
Test Piece Length Maximum: 80 to 100mm (3.15 to 3.93”) depending on the size of the Mandrel
Dimensions 320 x 135 x 130mm (12.6 x 5.3 x 5.1")
Weight 4.3kg (9.5lb)



Supplied With :

12 mandrels of stainless steel ( 2,3,4,5,6,8,10,12,16,20,25 & 32 mm diameters )

CONFORMS  TO:   ASTM D 522-B, DIN EN  ISO 1519,  JIS K 5600-5-1, IS 101
