Paint Resistivity Meter

PAINT RESISTIVITY METER                                                                                  ITW RANSBURG

Designed to provide measurement of the electrical resistance of paint formulations for all electrostatic applications as well as the short circuit current (SCI) of electrostatic applicators. It has an SCI scale (0 to 250 microamperes) and paint resistance scales (infinity to 0.01 and 2.0 to 0.001 in megaohms).

By measuring the surface resistance of materials normally considered to be electrically nonconductive and indicating the degree of sprayability on a standard scale, the Sprayability/Paint Test Meter can determine whether such materials can be electrostatically sprayed or whether they need to be treated to make them conductive.

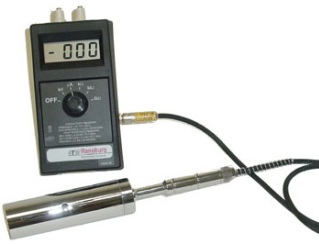

Sprayability Test Meter, Paint Probe
& Test Leads

Sprayability Test Meter & kV Probe

 By measuring the surface resistance of materials normally  considered to be electrically nonconductive and  indicating  the degree of sprayability on a  standard scale,the  Sprayability/Paint Test Meter can determine whether such  materials can be electrostatically sprayed.

 Designed to provide measurement of the  electrical resistance of paint formulations for all  electrostatic applications as well as the short circuit  current (SCI) of electrostatic applicators. It has an SCI  scale (0 to 250 microamperes) and paint resistance scales  (infinity to 0.01 and 2.0 to 0.001 in megohms).

The Paint Test Meter and Probe features:

• Digital multi-scale meter with integrated Sprayability Meter.

• Matching Paint Resistance Probe.

• Gun output test leads for short    circuit current (SCI).

• Certified as ASTM standard.

 The kV Test Probe provides an accurate  way to check electrostatic voltage of  application equipment.















The kV (kilovolt) Test Probe features:

• Measures kV and surface sprayability in one  meter.

• Measures all types of electrostatic equipment.

• Accurately displays throughout the entire      Measurement .

• Certified to ISO standards from the factory.

CONFORMS TO ASTM D 5682

MODEL NO. ITEM
76652-03 Paint Meter, Paint Probe & Test Leads
76652-04 Deluxe Kit w/Meter, Leads, Paint Probe and High Voltage Probe & Carry Case
