Category
Non Contact Thermometer
Non Contact Thermometer

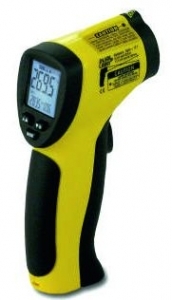

TROTEC, GERMANY NON CONTACT INFRARED THERMOMETER (PYROMETER) BP – 20

INFRARED THERMOMETER for a multitude of semi-professional applications With regard to contact-free temperature measuring Light, compact, easy-to-use.

Although principally designed as a starter model with an especially attractive price/performance Ratio to fit any budget.

The BP20 is in fact more – much more: it excels in its class boasting excellent performance data which no other rival model in this combination can even hope to match.

The expansive temperature range, for example, the optical resolution of 12:1,

An emission degree which can be set according to the specific material and an innovative dual laser which is able to automatically visualize the measuring spot size.

The user-friendly handheld meter, which is ready to use within seconds of being switched on, can determine temperature measurements ranging from -35 °C to +800 °C quickly and reliably and present them on a brilliant, backlit display for fatigue-free reading which is also possible in poor lighting conditions.

Maximum permissible values can be determined just as easily: the BP20 is not only able to freeze the current value – it can also depict maximum and minimum values and be programmed with individual threshold values which automatically sound an acoustic alarm when they are exceeded.

FEATURES:

  • ◆ Separately activatable dual laser.
  • ◆ Optional temperature display °C or °F.
  • ◆ Display resolution 0.1 °C.
  • ◆ Non-stop measuring function.
  • ◆ Maximum value display.
  • ◆ Minimum value display.
  • ◆ Hold displayed value.
  • ◆ Alarm function with user defined threshold values.
  • ◆ Emissivity - Variable, 0.1 to 1.00 freely adjustable.
  • ◆ Backlit LCD display.
  • ◆ Automatic switch off.
Technical data:
Optical resolution (D:S) 12:1
Temperature range -35° to 800 °C
Resolution 0.1 °C
Accuracy (surrounding temperature from 23 to 25 °C) ± 2.5 °C at -35 °C to +20 °C; ± 1 % of measured value or ± 1 °C at +21 °C to +300 °C; ± 1.5 % at +301 °C to +800 °C
Reproducibility ± 1.3 °C at -35 °C to 20 °C; ± 0.5 % or ± 0.5 °C at 21 °C to 300 °C; ± 1.0 % at 301 °C to 800 °C
Smallest Measurement Spot  ø 12.5 mm (Distance 150 mm)
Reaction time 0.3 sec.
Degree of emission Adjustable from 0.10 to 1.0
Spectral sensitivity 6 ~ 14 µm
Operating conditions 0 °C to 50 °C, 10 % to 90 % r.h.
Storage conditions -20 °C to 60 °C, < 80 % r.h.
Power supply 9V block battery
Dimensions 82 x 42 x 160 mm
Weight 177 g
Scope of supply Measuring device, storage bag, 9V battery, user manual
