Category
Inspection Accessory
Inspection Accessory

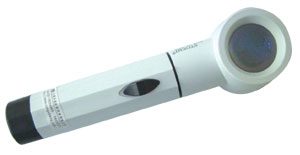

ILLUMINATED MAGNIFIER SSCE - 5720:

Ideal for viewing surface comparators.

Having 8 X magnification for close surface inspection in low light or dark areas - ballast tanks, oil and gas tanks, etc.

The exact conditions of the material profile, cleanliness etc.

The light, battery powered,Portable Lightweight magnifier.

POCKET MICROSCOPE  SIIN - 7210:

Pocket size making it an extremely practical microscope for site inspections.

Having x 30 magnification and a inbuilt light source, the Pocket Microscope is the ideal choice for close up investigation of defects and surface cleanliness.

The light, battery powered,Lightweight.

INSPECTION MIRROR SSCE - 152:

Ideal for inspecting difficult to access areas - inside pipes, behind corners, underneath inspection tanks, and other inaccessible or awkward areas.
High quality, robust mirrors

SSCE  131/1A - Extends from 180 mm (7") to 890 mm (35") Mirror diameter: 50 mm (2")

SSCE  131/1B - Extends from 150 mm (6") to 700 mm (28”) Mirror diameter: 30 mm (2.25")



WET FILM THICKNESS GAUGE (COMB) hexagonal reusable precision stainless steel for long lasting.

Six sided combs vary in size, giving  36 measurement steps, Make :- SSCE - 272 ,SWISS

Range :-  50 – 2000 µm

(25,50,75,100, 125,150, 175, 200, 225, 250, 275, 300, 350, 400, 450, 500, 550,

600, 650, 700, 750, 800, 850, 900,950,1000, 1100, 1200, 1300, 1400, 1500,

1600, 1700, 1800, 1900, 2000 µm)

Dew Point Calculator SIIN- 114:

Provides accurate values of Relative Humidity %RH and dew-point from the wet and dry bulb measured by a Whirling or Sling Hygrometer.

Range: -10 Deg. to 50 Deg.C.

            (14°F to 122°F)

Accuracy +/-1% with respect to standard tables.

The calculator includes a Deg. F to Deg. C converter

WHIRLING HYGROMETER SIIN – 116A:

Employs the wet and dry bulb principle to determine the relative humidity of the atmosphere.

A guide for Relative Humidity (RH) determination is supplied with each instrument and the dew point can accurately be obtained using the Dew Point calculator(Optional)

Range: (-) 5°C to(+) 50°C or (23°F to 122°F) Red Spirit filled thermometers

SLING HYGROMETER (Bacharach - 0012-7043)

(Red Spirit filled thermometers)

Designed to determine the dew point and relative humidity.

Self contained instrument with an inbuilt slide rule for the calculation of %RH and dew point.

Dual range (high & low temp.) scales for better resolution.

Range :  (-) 5°C to(+)  50°C  (23°F to 122°F)

NON CONTACT THERMOMETER TROTEC – BP-20:

Can determine temperature measurements ranging from -35 °C to +800 °C quickly and reliably and present them on a brilliant, backlit display for fatigue-free reading which is also possible in poor lighting conditions.

  • ◆ Display resolution 0.1 °C.
  • ◆ Emissivity - Variable, 0.1 to 1.00 freely.
  • ◆ Maximum value display.
  • ◆ Minimum value display.
  • ◆ Hold displayed value.
  • ◆ Alarm function with user defined threshold.

THERMO-HYGROMETER TROTEC – BZ-05:

Simultaneous display of room temperature, relative humidity, time & date and Additional comfort zone indicator

  • ◆ Minimum and maximum value, Alarm function.
  • ◆ Large, crystal clear display with easy-to-read values.
  • ◆ Can be placed on a table or fixed to a wall.
Air temperature Range 0  to +50°C(32° to 120 °F)
Resolution 0.1 °C
Accuracy ±1 °C (±1.8 °F)
Relative humidity Range 10 % RH to 90 % RH
Resolution 1 % RH
Accuracy Max. ±5 % RH



DUST TAPE TEST KIT SIIN - 142:

Allows assessment of the quantity and size of dust particles on surfaces prepared for painting. Dust on blast cleaned surfaces can reduce coating adhesion, leading to premature coating failure and sub-standard coating finish. The kit can be used in accordance with the recommendations of BS EN ISO 8502-3 either as a pass/fail test or as a permanent record of the presence of dust.

  • ◆ Measurement Range  Chart with dust.
  • ◆ Classes ranging from 0 - 5 with descriptions for accurate class placement.

SPRING  LOADED DUST TAPE ROLLER SIIN - 152:

 The Dust Tape Roller is used in conjunction with the Dust Tape test Kit to assess the quantity and size of dust particles on surfaces prepared for painting.

The Dust Tape Roller presses the Dust Tape to the surface using a controlled constant force as required by BS EN ISO 8502-3 (BS 7079-B3:1993).

Load Exerted 39.2 to 49.0 N, (8.8 and 11.0 lbF) when spring fully depressed.

The Dust Tape Test Kit, has to be ordered separately.
